Saiensi specializes in the research, development, and manufacturing of core components for fuel and new energy power systems. The methanol pump is an independently developed product, supported by proprietary brushless motor technology and extensive experience in fuel pump design and production. Both in terms of market development and technical innovation, Saiensi maintains a leading position in the methanol pump industry.

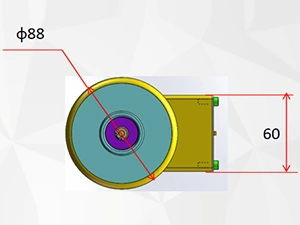

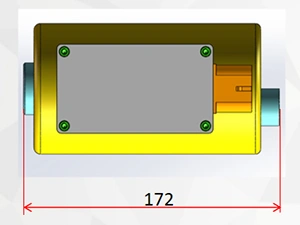

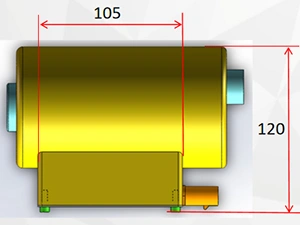

| Dimensions | 172 × 120 × 88 mm |
| Weight | 3.623 kg |
| Voltage | DC 24V |
| Rated Current | 5A |
| Power | 120W |
| Locked-rotor Current | 15A |
| Rated Torque | 1.2 N·m |
| Rated Speed | 1500 r/min |
| Locked-rotor Torque | 3.13 N·m |
| Working Medium | M100 Methanol |
| Operating Temperature | -45°C to 80°C |
| Flow Rate | ≥500 L/h at 0.5 MPa |

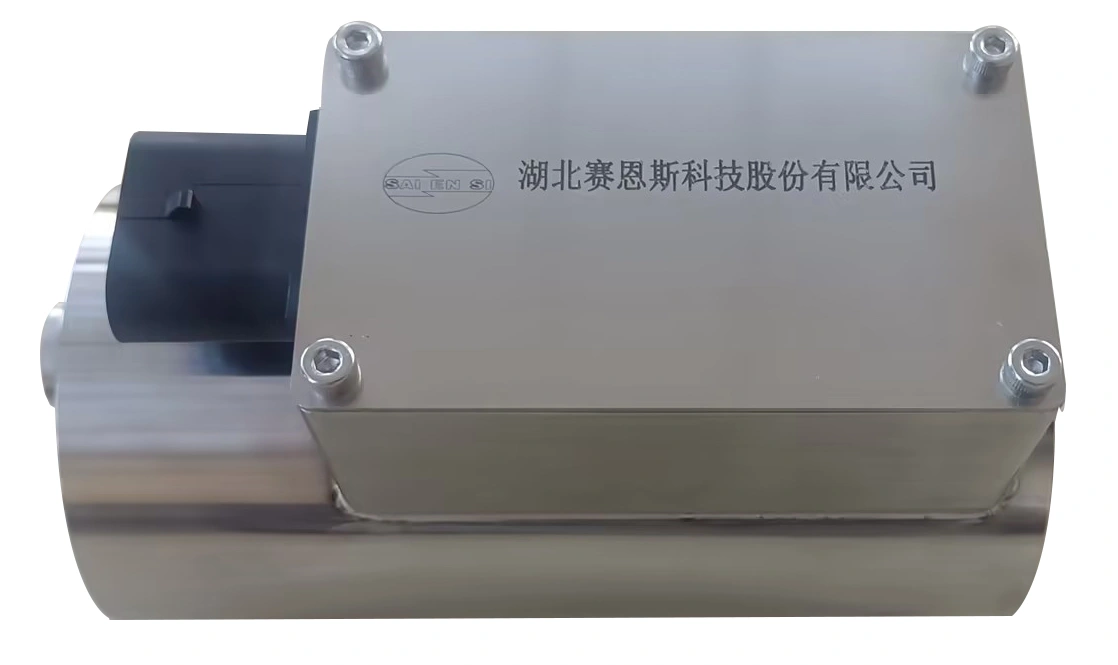

The methanol pump functions as a power unit that delivers methanol to the engine at a specified flow rate and pressure.
Need help choosing the right product or planning your project? We’re here to provide the assistance you need.

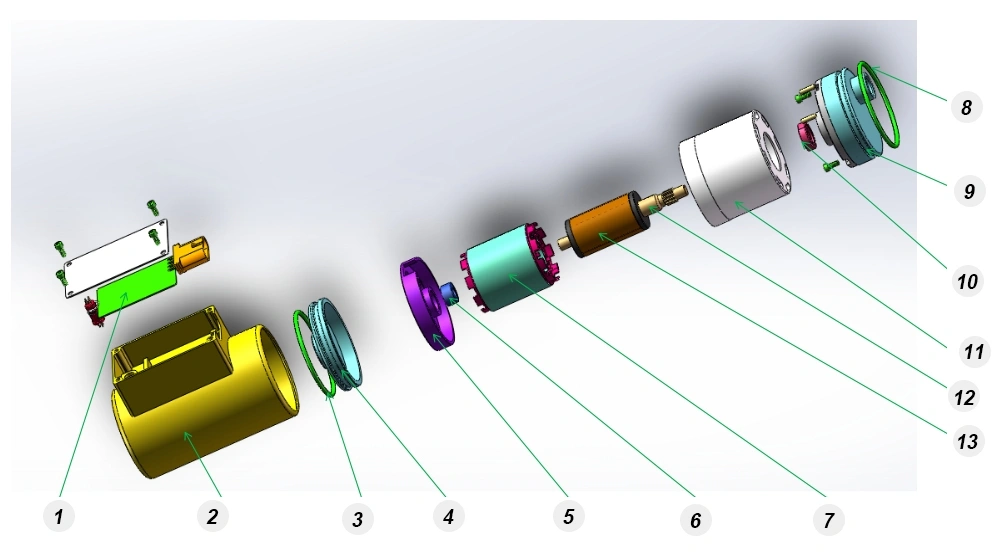

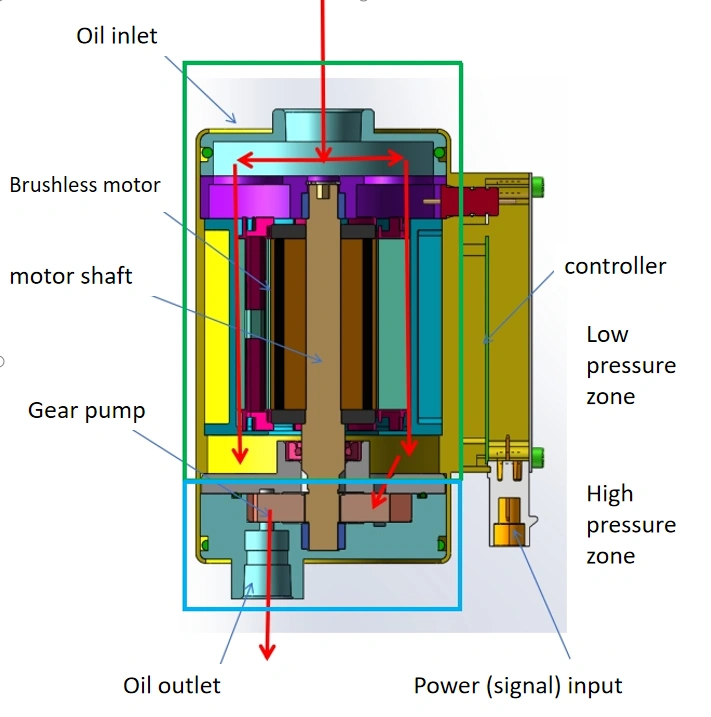

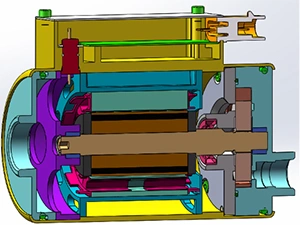

The methanol pump serves as a power unit delivering methanol to the engine under stable flow and pressure. It consists of a centrifugal volumetric pump, motor, and controller. Methanol has strong electrolytic properties when energized, which can accelerate wear on components such as carbon brushes and commutators. By adopting a brushless motor design, the pump minimizes these effects, enhancing durability and supporting energy efficiency and environmental protection in methanol-fueled vehicles.
