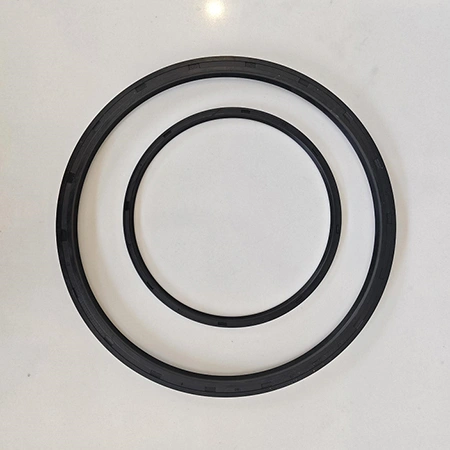

Skeleton Oil Seals

Request a Quote

Rubber oil seals designed to withstand high pressure, temperature and wear for sealing applications in various industries

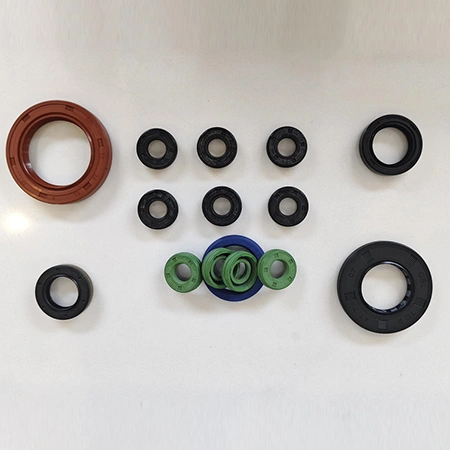

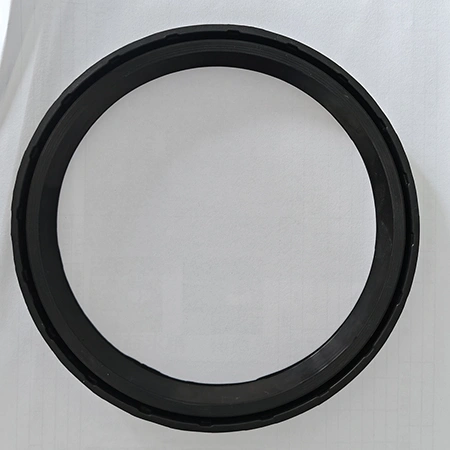

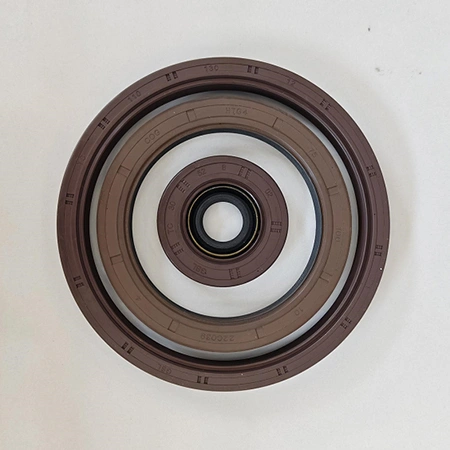

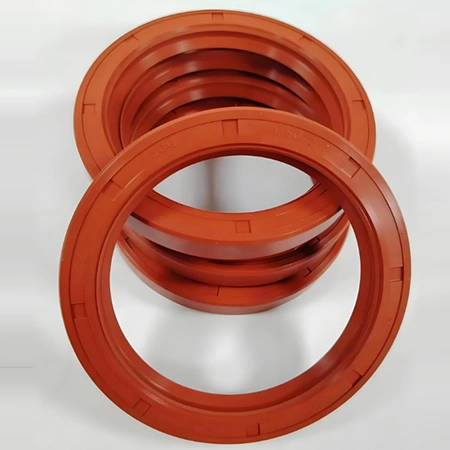

Skeleton oil seals are specialized sealing components designed for high-pressure and high-temperature applications. With over 30 years of experience in rubber manufacturing, Saiensi continually innovates and refines its technology to produce skeleton oil seals with reliable resistance to temperature, pressure, and wear. Saiensi’s expertise in material formulation and manufacturing processes ensures stable performance, and proficiency in fabric-reinforced oil seal design allows the compony to respond quickly to customer customization requirements.

Skeleton Oil Seals Advantages

High strength and pressure resistance: Can withstand pressures up to 50MPa, ensuring stable operation of hydraulic systems and machinery.
Wide temperature adaptability: Operating range from -40℃ to 200℃, customizable based on material, suitable for extreme environments.
Works well with various fluids: Compatible with mineral oil, water, ethylene glycol, and other working media.
Wear-resistant and durable: Internal fabric reinforcement strengthens the sealing structure, reducing replacement frequency and maintenance costs.
Customization capability: Material, dimensions, and structure can be optimized based on specific conditions such as oil pressure, rotational speed, and temperature variation.
Technical support: Seal analysis, fatigue testing, and selection guidance are provided to reduce downtime risks.

Comparison Between Standard and Special Skeleton Oil Seals

Type	Working Pressure	Operating Temperature	Speed	Working Medium	Size Range
Standard Skeleton Oil Seal	≤0.05MPa	-40℃~200℃	< 35m/s (material dependent)	Mineral oil, water, ethylene glycol	ethylene glycol Outer diameter 10-100mm
Special Skeleton Oil Seal	≤40MPa	-30℃~100℃	Linear speed less than 5 meters per second	Mineral oil, water, ethylene glycol

For special customization, please contact us with your specifications for rapid production.

Common Models

Dimensions dDH (inner diameterouter diameterheight) in mm, e.g., 14017015 (ID 140mm, OD 170mm, H 15mm)

10*20*6, 10*20*5, 12*25*6, 8*16*5, 6*13*4, 40*62*7, 40*62*10, 40*90*10, 50*70*12, 50*39*11, 18*29*6, 55*75*12, 65*95*10, 75*100*12

Common Rubber Materials and Properties

Material	Temperature Range	Features	Suitable Medium
Nitrile Rubber (NBR)	-40℃~120℃	Wear resistance	Mineral oil, etc.
Fluororubber (FPM)	-25℃~300℃	Strong chemical resistance, high temperature stability	High-temperature and chemical media
Silicone Rubber (VMQ)	-50℃~250℃	High and low temperature resistance, elasticity	Extreme temperature environments
Acrylic Rubber (ACM)	-30℃~150℃	Oil-resistant, resistant to specific chemicals	Specific liquid media

With extensive experience in rubber seal production, Saiensi offers durable and reliable skeleton oil seals suitable for various working conditions, along with customization and technical support. From motors and marine applications to agricultural machinery, Saiensi is a trusted partner.

Applications

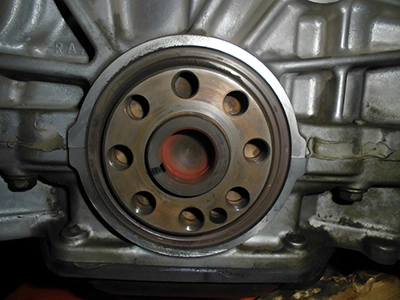

Skeleton oil seals for motor applications

Skeleton oil seals for marine applications

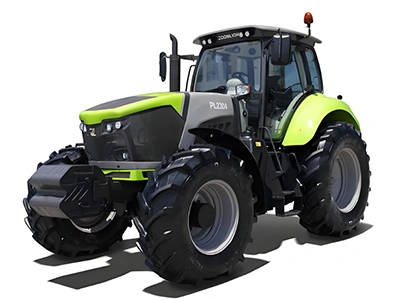

Skeleton oil seals for agricultural machinery
